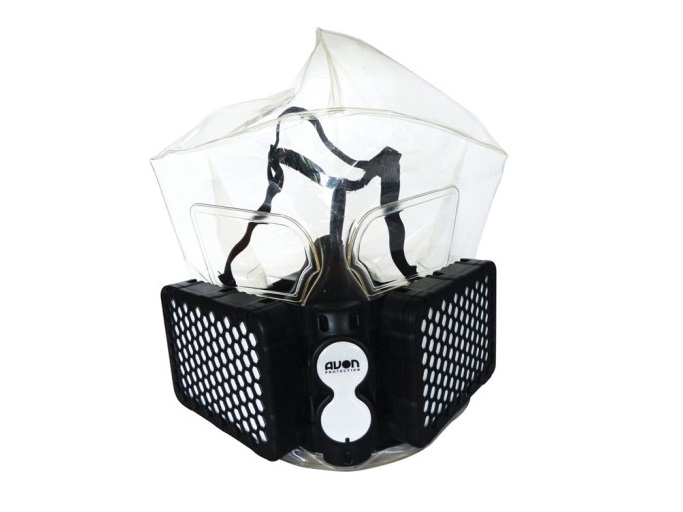

NH15 CBRN Compact Escape Hood
75027
Compact Escape Hood
The Avon Protection NH15 CBRN Air Purifying Escape Respirator is the smallest and most compact escape hood on the market, approved to carry NIOSH and CE marking. Its low cost makes it ideal for police, emergency medical services and fire officers seeking immediate or emergency respiratory protection in a CBRN scenario.
The NH15 hood has a five year shelf life and provides a high level of respiratory, eye and face protection for a minimum of fifteen minutes. Made of clear material, the NH15 not only protects against all airborne CBRN threats but also protects the face from liquid agent splashes.
The clear material gives a non-threatening appearance, aids with recognition of the wearer and also allows for superior visual communication. Twin low-profile filters on a unique hinge system feature the latest filtration media which reduces breathing resistance and a front reflector makes it easier to identify colleagues in low light environments.
SPECIFICATIONS
| Protection Factor & Hood Performance | |
|---|---|
| Breathing Zone (Oronasal) | Greater than 2,000 |
| Head zone (Ocular) | Greater than 150 |
| Neck size ranger | 330-558mm (regular) |
| Donning time | Less than 30s |
| Re-breathing CO2 | Less than 2.0% |
| Breathing Resistance | |
| Inhalation at 85lpm | Less than 50 mm H20 |
| Exhalation at 85lpm | Less than 10 mm H20 |
| Barrier Performance (Tested at ECBC) | |
| GB | Greater than 30 minutes |
| HD | Greater than 30 minutes |
| Smartman Performance (Tested at ECBC) | |
| GB | Greater than 30 minutes |
| HD | Greater than 30 minutes |
| Filter Performance | P3/P100 (Less than 0.03%) |
| Particulate Penetration | P100 (Less than 0.03%) |
| Packaging | |
| Pack Size | 6" X 4" X 3.4" in (150 X 100 X 90 mm) |
| Packaging type | 4 layer foil barrier bag surrounded by reinforced nylon carrier |
| Weight (as carried) | 1 lb 7 oz (625g) |
| Packaged shelf life | 5 years when stored between 5oF and 105oF |
| User instructions | 3 language user guide supplied |
| Sizing | |
| Extra Small | 12 to 13 inches |
| Regular | 13 to 18 inches |
| Large | 18 to 22 inches |
| Training hoods are available on request | |
| Challenge Concentration (ppm) | Breakthrough Time (minutes) | |
|---|---|---|
| Hydrogen Sulfide | 500 | > 150 minutes |
| Ammonia | 1250 | > 20 minutes |
| Sulphur Dioxide | 750 | > 30 minutes |
| Cyclohexane | 1300 | > 35 minutes |
| Formaldehyde | 250 | > 45 minutes |
| Hydrogen Cyanide | 470 | > 45 minutes |
| Nitrogen Dioxide | 100 | > 45 minutes |
| Phosphine | 150 | > 45 minutes |
| Phosgene | 125 | > 45 minutes |
| Cyanogen Chloride | 150 | > 30 minutes |
