Thermal Imaging - TVS11M

Thermal Imaging - TVS11M

**PLEASE CALL 506-378-1045 FOR A QUOTE**

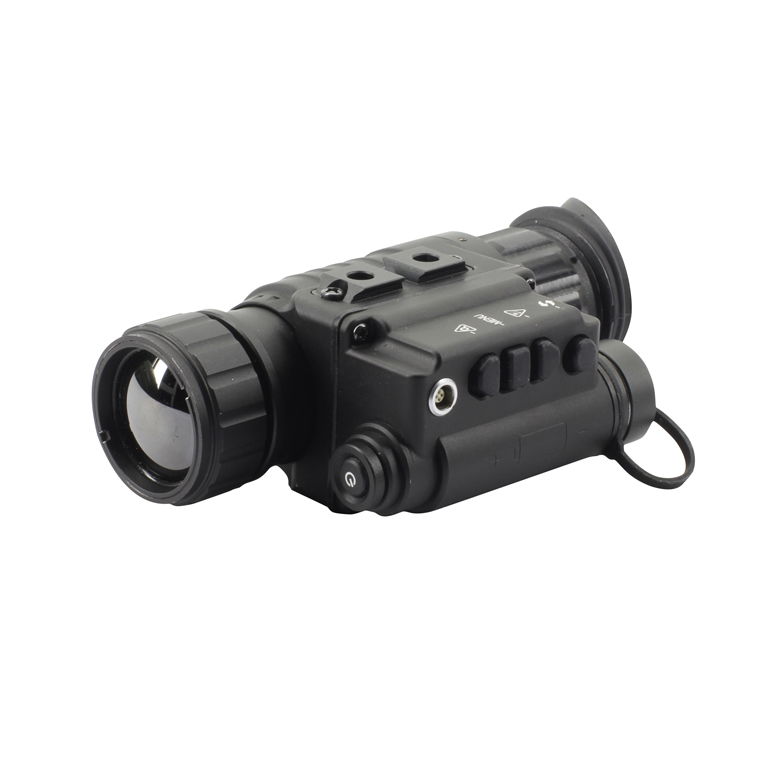

The TVS 11M tactical thermal monocular is the next generation of Newcon Optik’s tried and tested thermal monocular series. As a lightweight and compact handheld, helmet or weapon mounted device, the TVS 11M is well suited to a variety of tactical, law enforcement, search and rescue and industrial applications. The TVS 11M utilizes passive infrared sensing technology allowing users to detect extremely small differences in the temperature of objects, people and other heat sources within the field of view. Unlike traditional night vision devices, the TVS 11M can be operated 24 hours a day, in daytime and at night, even in the total darkness of an enclosed space, has the ability to see through smoke, fog and other obscurants, boasts a variety of colour and contrast settings and digital zoom capability. The TVS 11M can also be connected to external display devices allowing other parties to view the observed image in real time.



- Available optional 2x lens

- High-resolution uncooled thermal sensor

- Superb image clarity

- Ergonomic design

- Simple to operate


General Information:

Resolution (pixels) 384×288
Operating wavelength (µ) 7 – 14
Sensitivity (mK @F1.0) <70
Video Output PAL or NTSC
DRI Range to human sized target, with 1x lens (m) 570 / 145 / 70
DRI Range to vehicle sized target with 1x lens (m) 1500 / 380 / 190
DRI Range to human sized target, with 2x lens (m) 1140 / 290 / 140
DRI Range to vehicle sized target with 2x lens (m) 3000 / 760 / 380
Multiple colour options
Objective focal length (mm) 25
Field of view (°) 22×16.5
Eye relief (mm) 25
Dioptric correction -6 to +2
Zoom 2x, 4x
Mechanics, Electronics & Environmental
Dimensions (mm) 142x73x50
Weight without batteries (g) 396
Battery type 18500 (3.7V)
Battery life (hours) 4
Operating Temperature (°C) -40 to +60
Waterproofing MIL-STD-810G
Weapn mounting system MIL-STD-1913
Weapon compatibility Assault rifles, RPG
Aiming reticle
