Spotting Scope - Spotter LRF
**PLEASE CALL 506-378-1045 FOR A QUOTE**

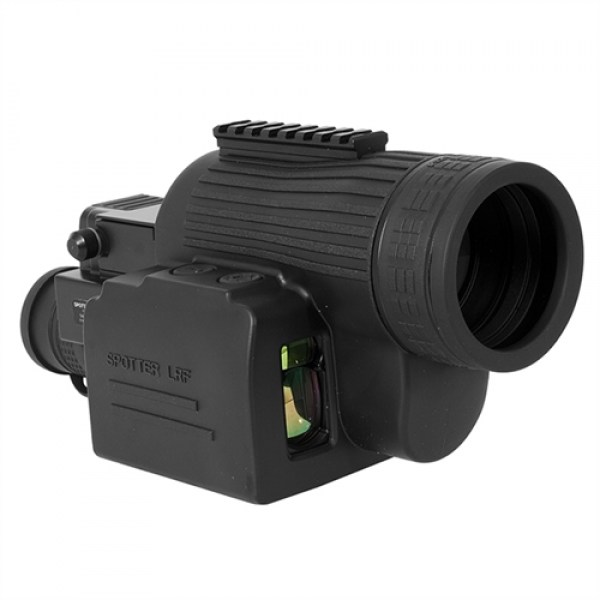

The SPOTTER LRF is the first of its kind—a combined spotting scope/laser rangefinder system. It makes it faster, easier and more accurate than ever before to acquire range, inclination and azimuth data on long distance targets. This model is built to MIL-STD-810G standards and is fully ruggedized to handle real-world military deployment. With 15-45x variable magnification, fully multi-coated optics, an etched mil-dot reticle, USB output and LED display, the SPOTTER LRF is among the most versatile optics you can bring with you to the field. This model is compatible with an AndroidTM – based application and other peripheral devices.
Features:
- 2,000 metre range
- Distance, Azimuth and Elevation measurements
- Measurements between two objects
- Precise GPS Location
- Android Compatible
General Information:
| Optics | |
| Magnification (x) | 15x – 45x |
| Objective lens (mm) | 60 |
| Exit pupil diameter (mm) | 4.17 – 1.34 |
| Eye relief (mm) | 25 – 26 |
| Field of view (°) | 3.4 (15x) -1.2 (45x) |
| Axial resolution (center), (arcsec) | 3.0 |
| Diopters adjustment range, dpt | ± 5 |
| Laser Rangefinder | |
| Eye safety | Class 1, eye safe |
| Wavelength (nm) | 905 |
| 1064 nm laser protection | Optional |
| Specified Measuring range (m)* | 10 – 2,000 |
| Display | |
| Aiming reticle type | Etched reticle (MIL Dot) |
| Display type | Customized matrix OLED |
| Display brightness control | Manual (8 levels) |
| Mechanical, Electronics and Environmental | |
| Dimensions (mm) | 280x140x105 |
| Weight with battery (g) | 1,590 |
| Operational temperature (°C) | -35 to +55 |
| Storage temperature (°C) | -45 to +65 |
| Waterproof | 1m/30min |
| Environmental conditions | MIL-STD-810G |
| Tripod mounting pad | Yes |
| 3-axis digital compass | Yes |
| Internal power supply | 2x CR123 Lithium |
| Battery life (# of measurements) | 5000 |
| Nitrogen filled | Yes |
