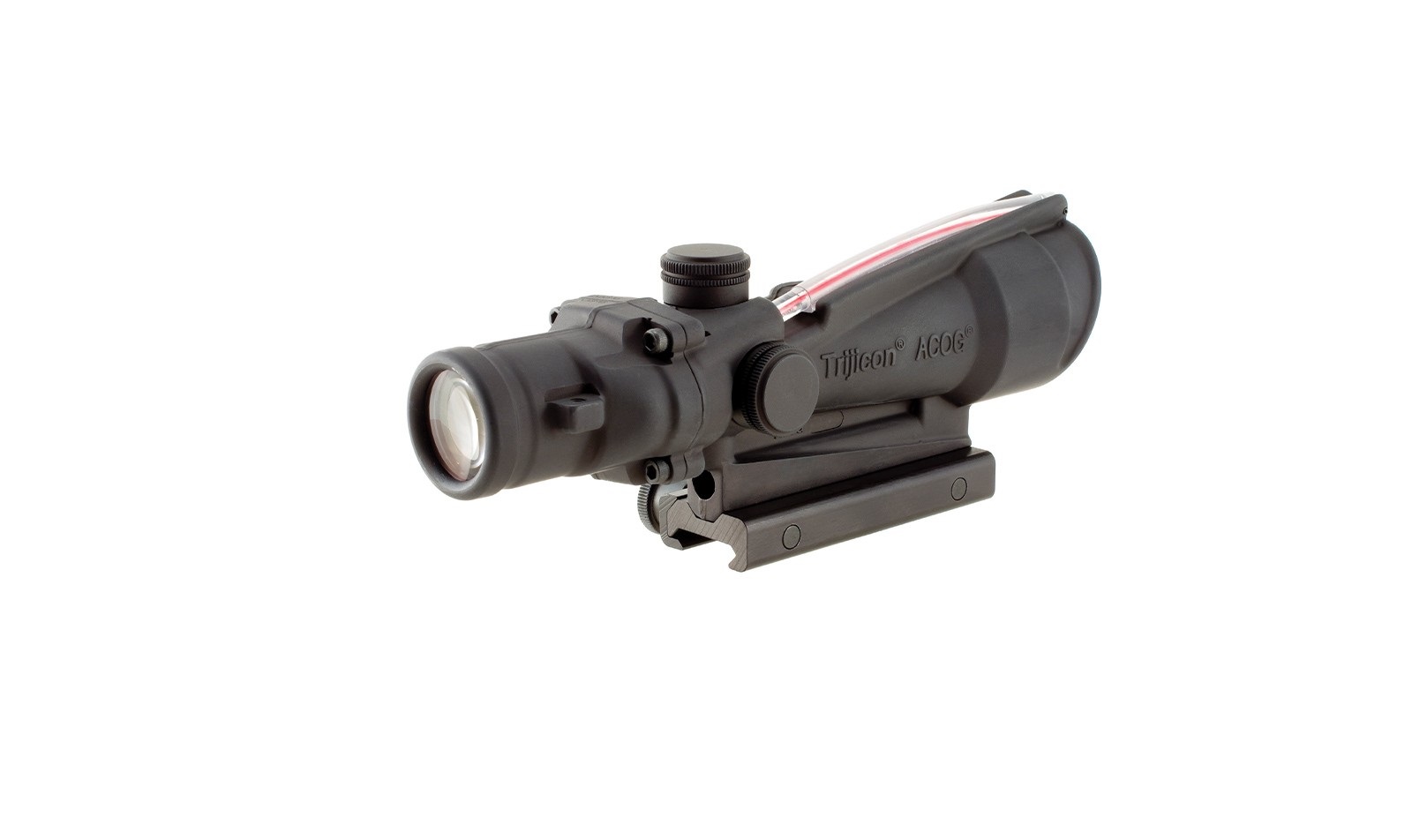

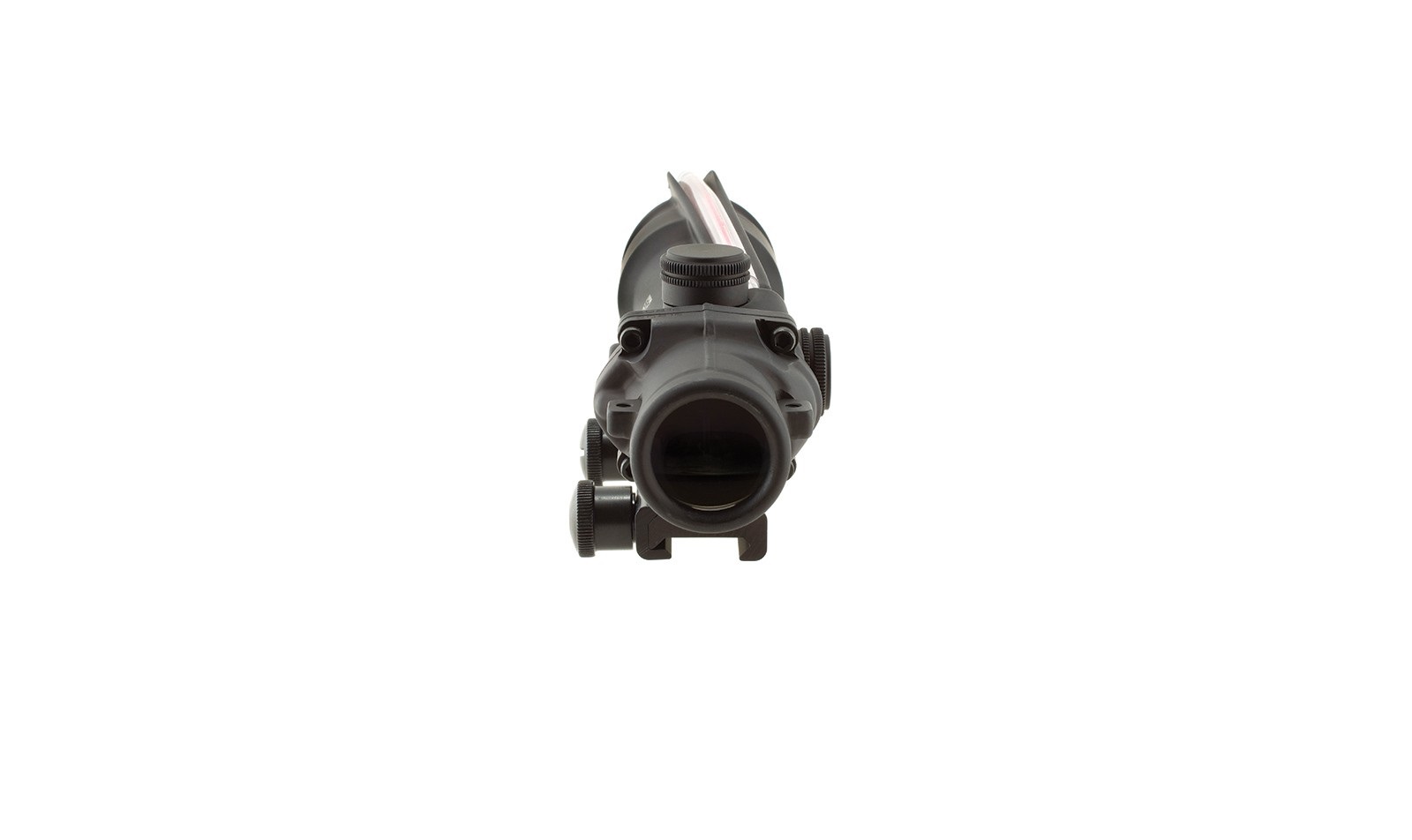

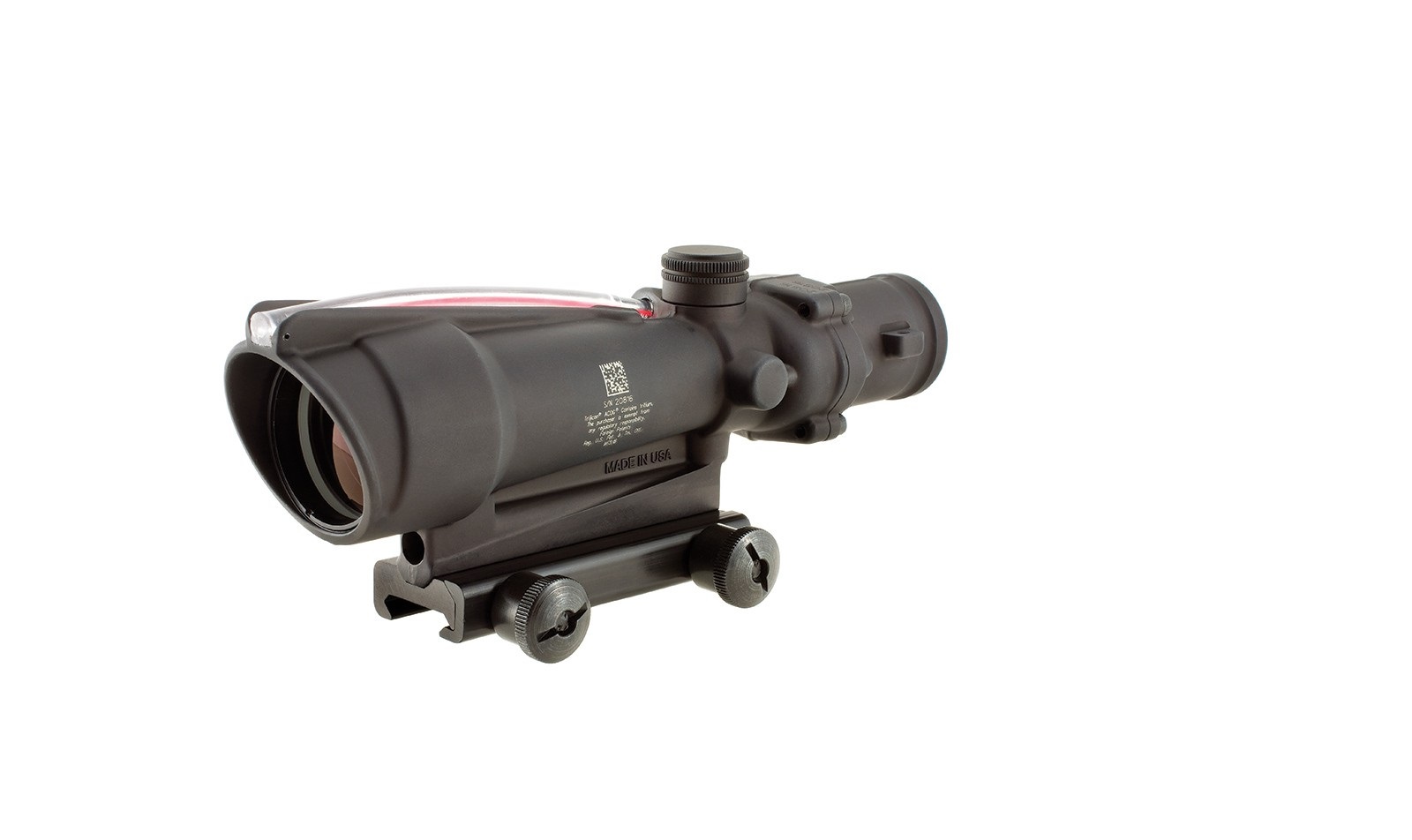

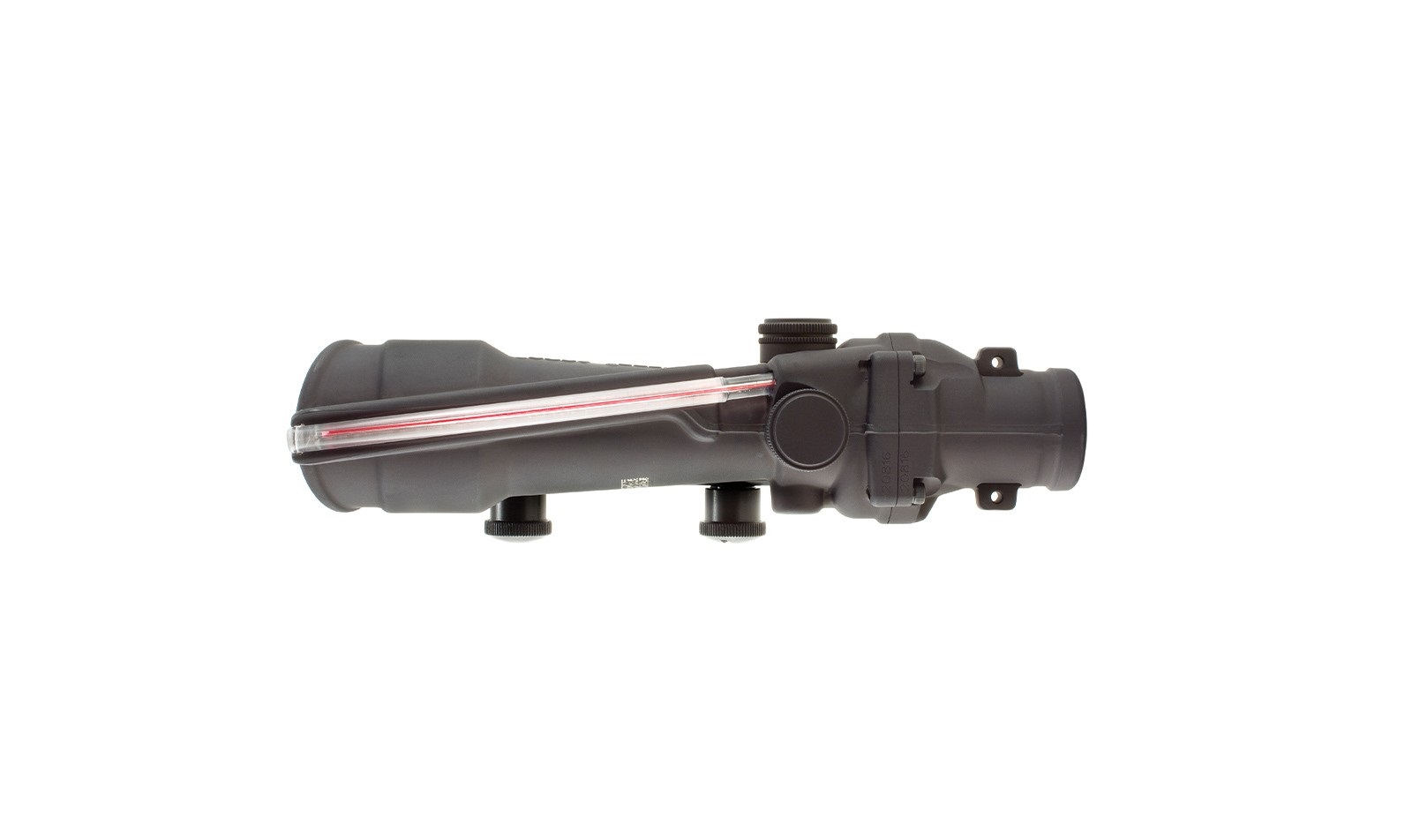

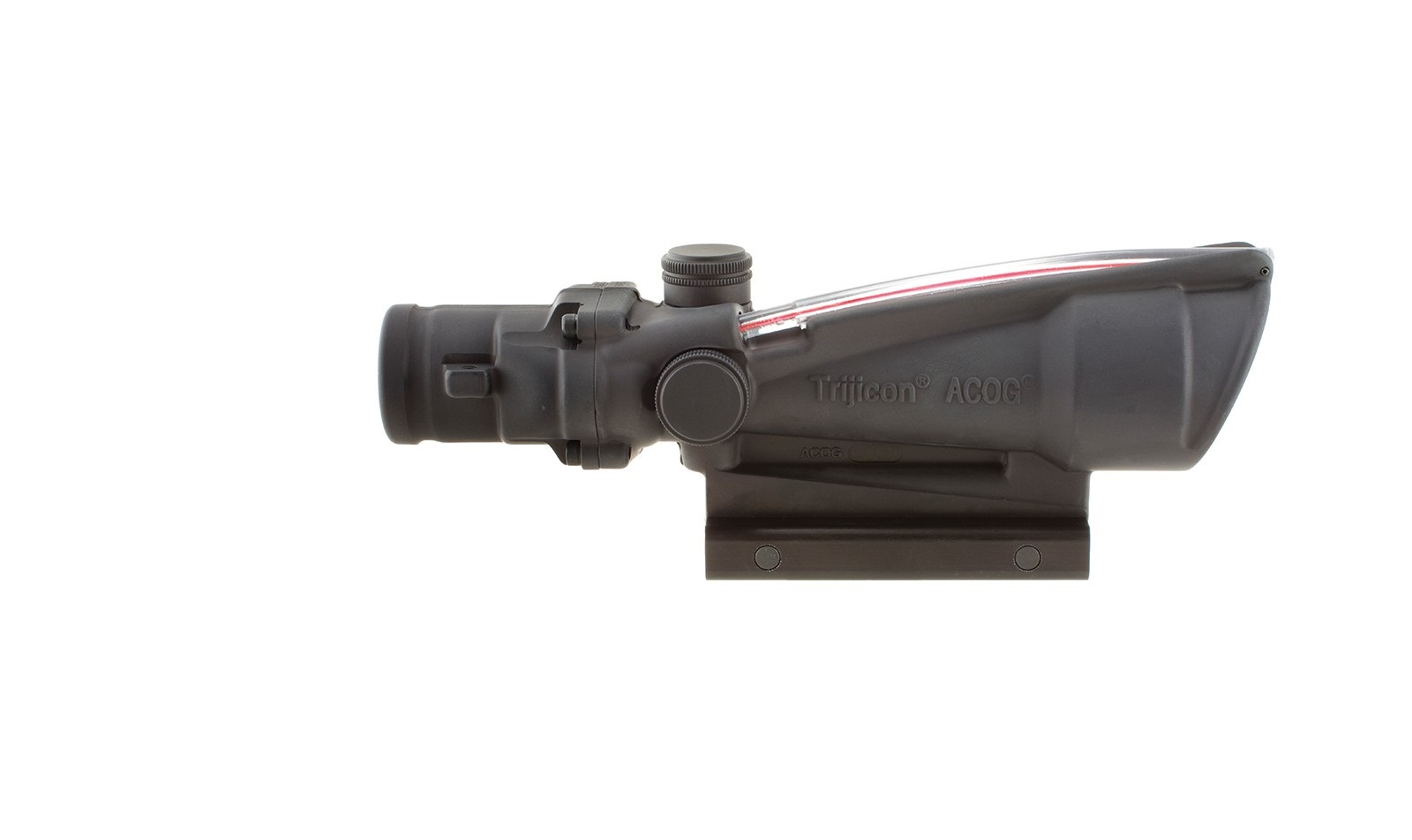

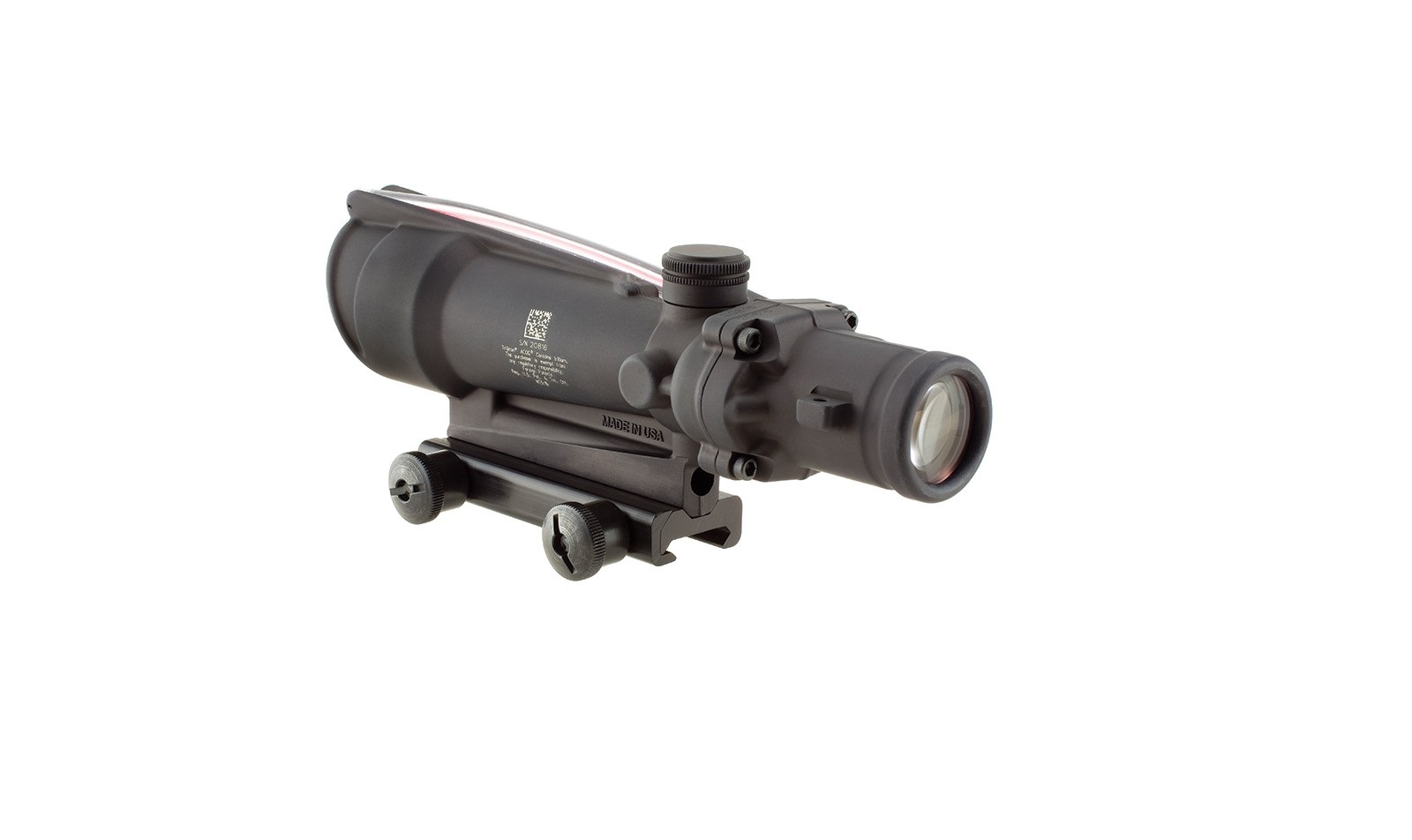

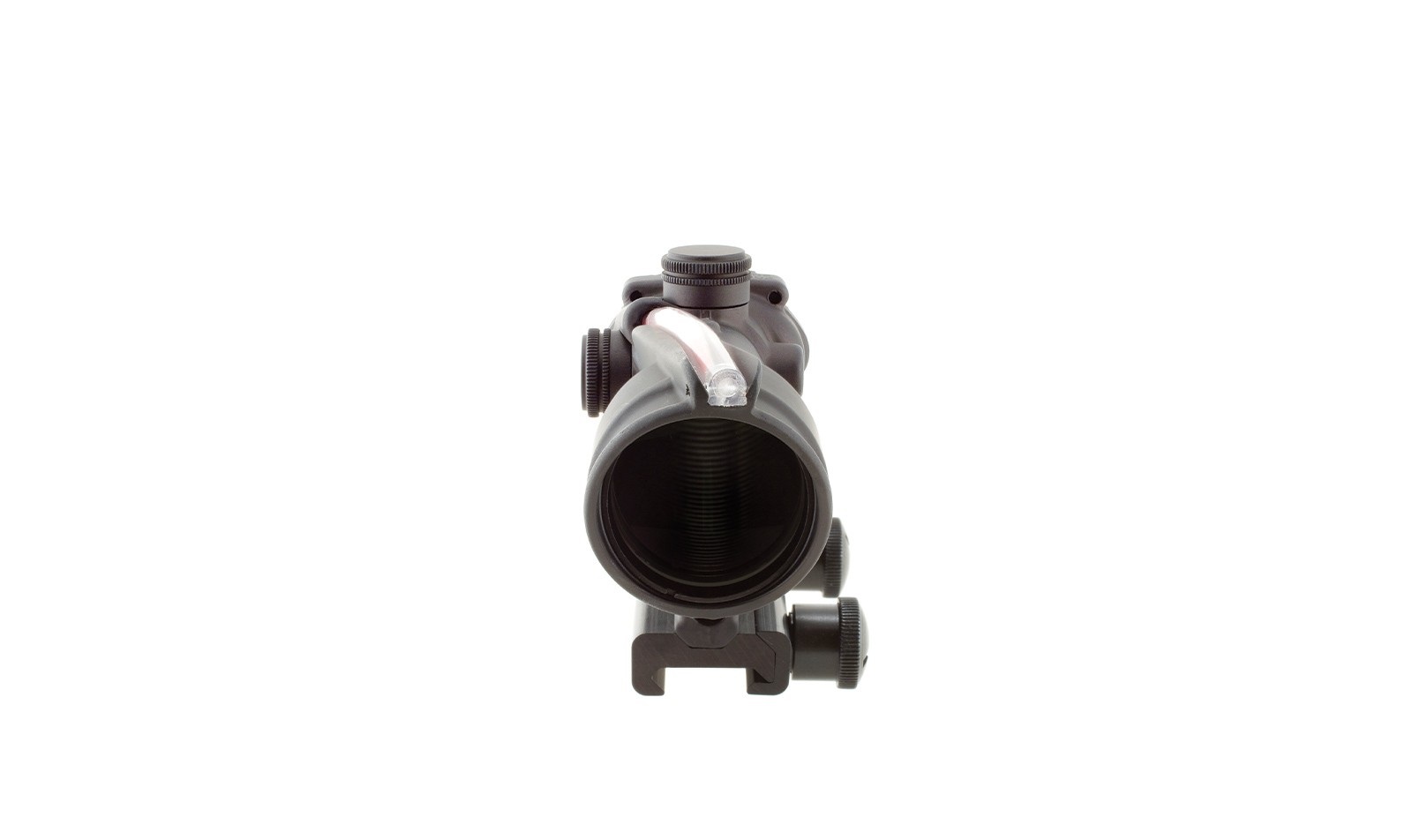

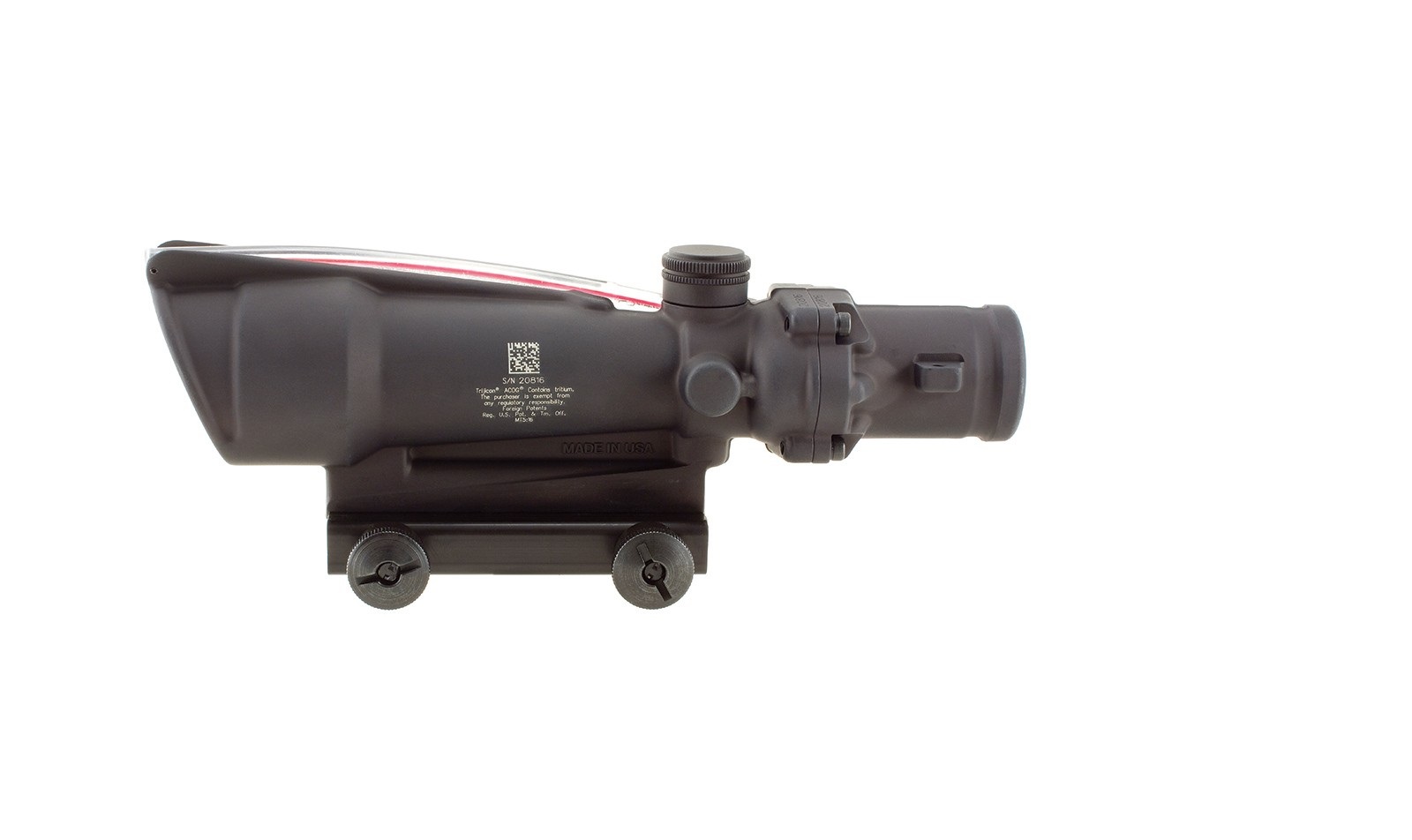

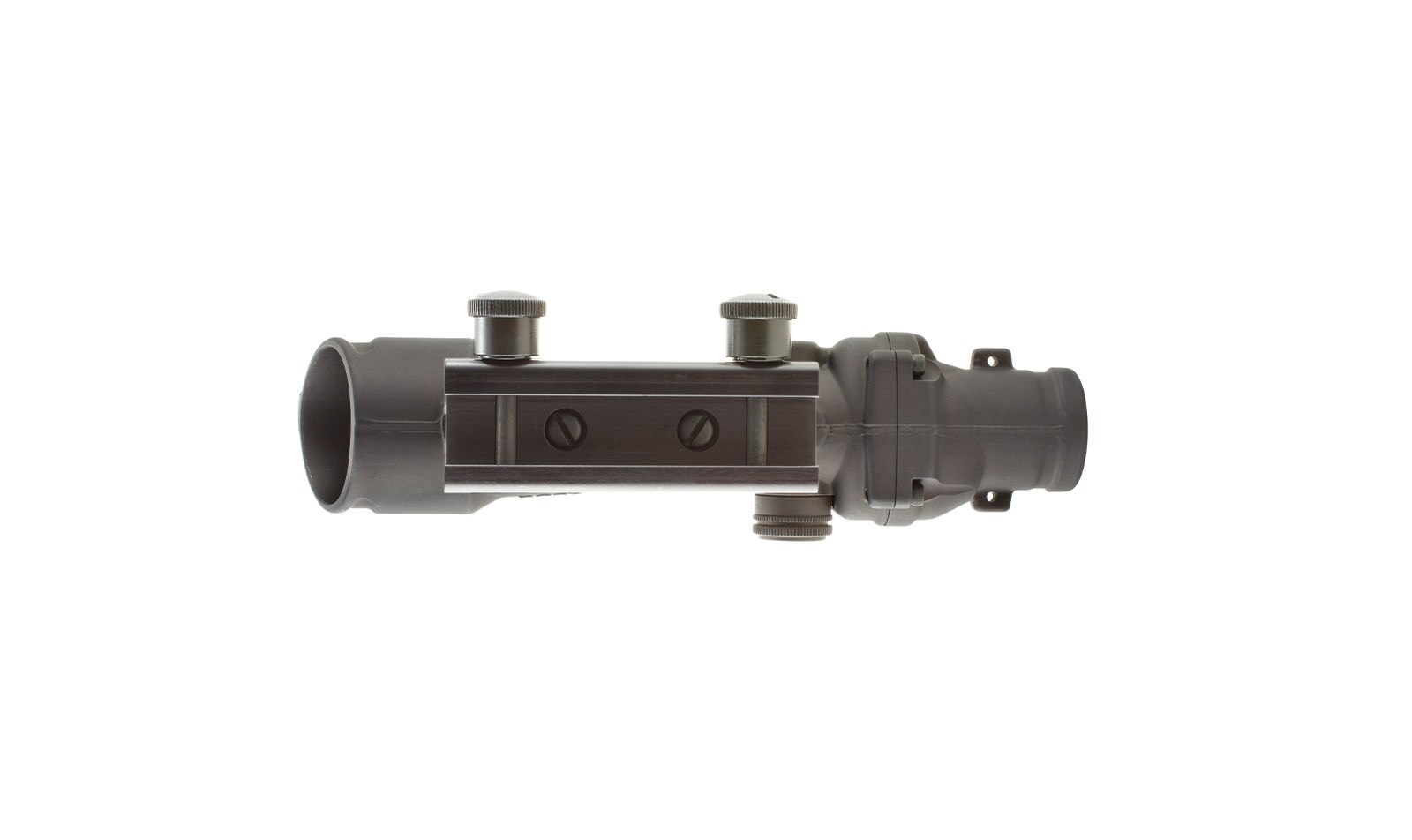

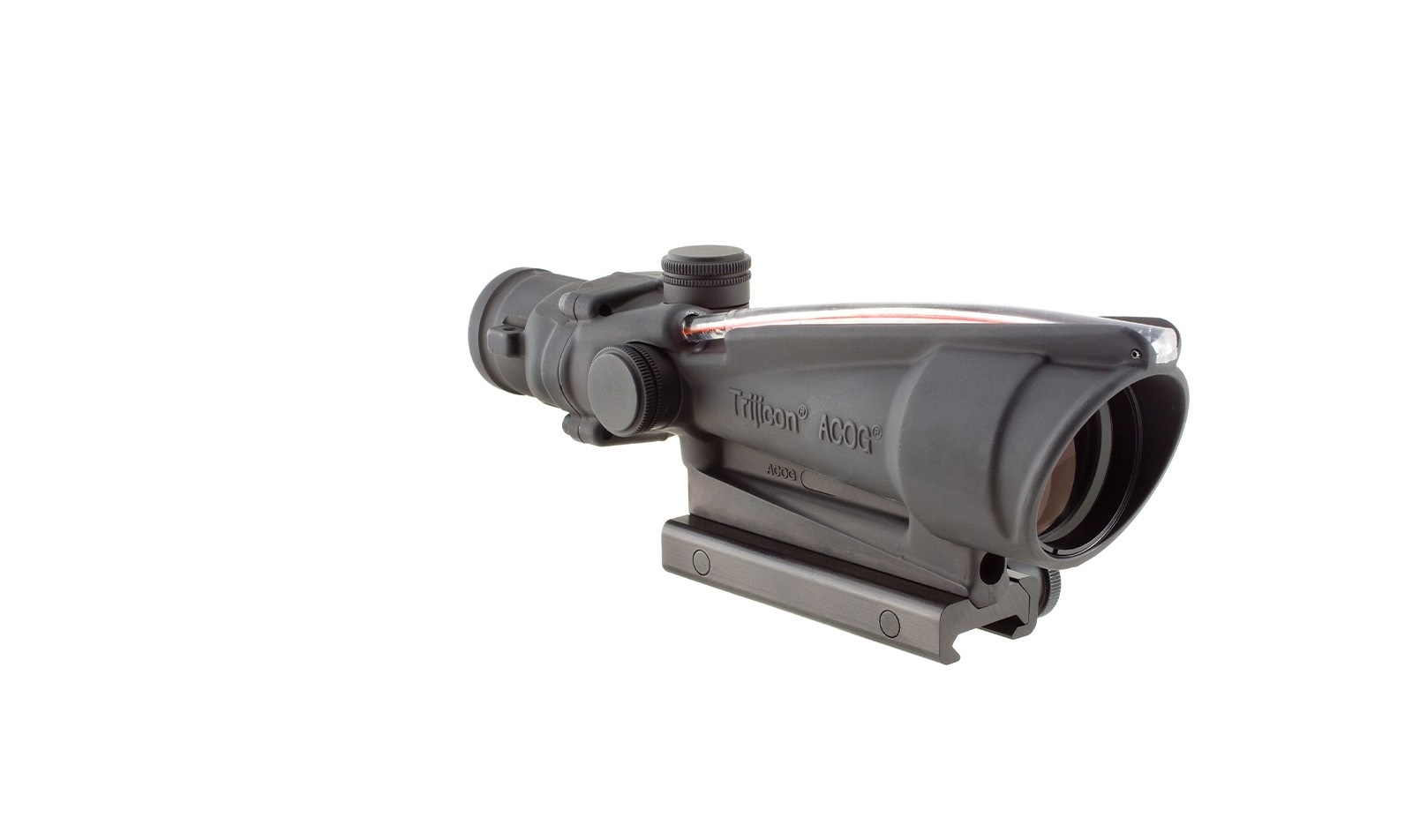

ACOG 3.5x35 BAC Riflescope .223/5.56 BDC
TA11F
Description
Red Chevron Reticle, Thumbscrew Mount, Tritium / Fiber Optics Illuminated

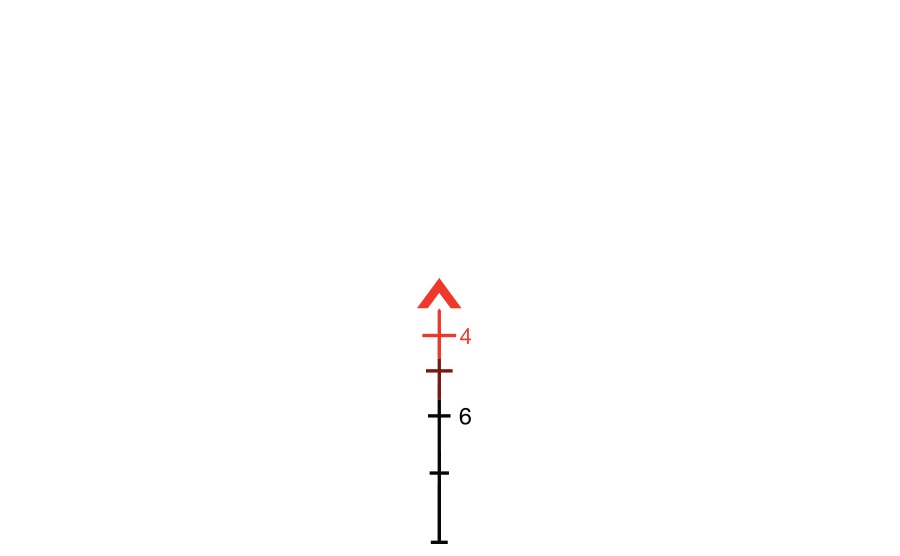

ACOG® 3.5x35 scope with Red Chevron BAC Reticle- The ranging reticle is calibrated for 5.56 (.223 cal) flat-top rifles to 800 meters. The chevron reticle is designed to be zeroed using the tip at 100 meters. The width of the chevron at the base is 5.53 MOA which is at 19” at 300 meters. This allows range estimation for silhouette targets.
INCLUDES :
Thumbscrew Flattop Adapter (TA51)
3.5x35 Scopecoat (TA63)
LENSPEN (TA56)
Lanyard Assembly for Adjuster Caps (TA71E)
Trijicon Logo Sticker (PR15)
ACOG BAC Manual
Warranty Card
SPECIFICATIONS
Length x Width x Height
8 in x 2.1 in x 2.9 in
(203.2mm x 53.34mm x 73.66mm)
(203.2mm x 53.34mm x 73.66mm)
Weight
17.6 oz. (498.95g)
Magnification
3.5x
Objective Size
35mm
Reticle Pattern
Chevron
Day Reticle Color
Red
Night Reticle Color
Red
Bullet Drop Compensating (BDC)
Yes
Caliber
.223 / 5.56
Bindon Aiming Concept™ (BAC)
Yes
Illumination Source
Fiber Optics & Tritium
Power Source
Fiber Optics & Tritium
Adjustment
½ MOA per click
Eye Relief
2.39 in. (60.71mm)
Exit Pupil
0.39 in. (9.91mm)
Field of View (degrees)
5.5°
Field of View (feet)
28.9 ft. @ 100 yds. (9.63m @ 100m)
Mount
Flattop Thumbscrew Mount (TA51)
Housing Material
Forged Aluminum
Finish
Matte Black
