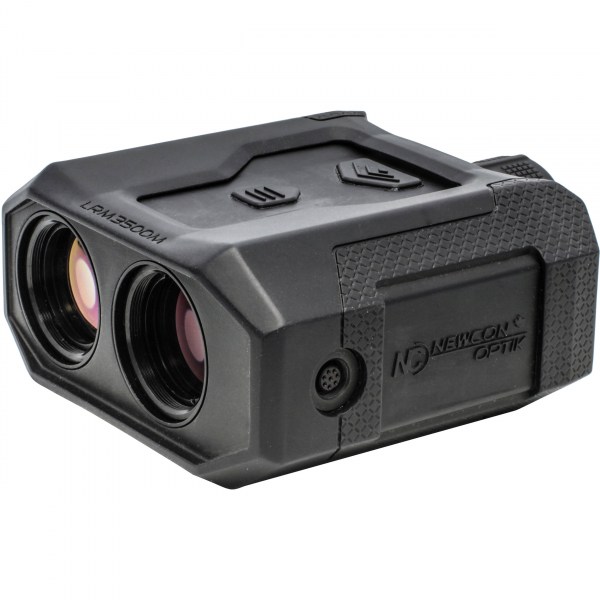

Range Finder - LRM 3500M
Range Finder - LRM 3500M
Description
**PLEASE CALL 506-378-1045 FOR A QUOTE**
The LRM 3500M combines excellent 6.5x optics with the world’s most advanced laser rangefinder technology. Revised approaches in optical and electronic engineering allow target acquisition at longer distances with better reliability under a wider range of weather conditions. This model allows observation of distant objects with superb image quality plus it measures the distance to the object up to 3,500 meters (output display in yards also).
Features:
- 3,500 metre range
- Distance, Azimuth and Elevation measurements
- Measurements between two objects
- Rugged and compact design
- Android Compatible
General information:
| Optics | |
| Magnification (x) | 6.5 |
| Objective lens diameter (mm) | 30 |
| Field of view (°) | 7 |
| Eye relief (mm) | 20 |
| Diopter adjustment range | ±5 |
| Rangefinder | |
| Eye safety | Class 1, eye-safe |
| Wavelength (nm) | 1550 |
| Measuring distance range (m)* | 10 – 3,500 |
| Distance measurement accuracy (m) | ±1 |
| Azimuth measurement accuracy (°/mils) | ±1 / 17.5 |
| Inclination measurement accuracy (°/mils) | ±0.5 / 8.8 |
| Speed detection | Yes |
| First/last target logic | Yes |
| Scan mode | Yes |
| Last 10 readings recall | Yes |
| Distance between objects | Yes |
| Horizontal distance between objects | Yes |
| Azimuth difference between objects | Yes |
| Inclination difference between two objects | Yes |
| Height difference between objects | Yes |
| User GPS coordinates | Yes |
| Target GPS coordinates | Yes |
| GPS coordinates format | Dec Degs Micro |
| Mechanics, Electronics & Environmental | |
| Display type | Customized Matrix Red OLED |
| Computer output, type | USB, Bluetooth (optional) |
| Dimensions with no sleeve (mm) | 118x107x54 |
| Weight without batteries (g) | 460 |
| Power supply | 2x CR123 LIthium |
| Battery life (# of measurements) | 5,000 |
| Tripod moutable | Yes |
| 3-axis digital compass | Yes |
| Operating temperature range (°C) | -35 to +55 |
| Storage temperature range (°C) | -40 to +65 |
| Waterproofing | MIL-STD-810G |
*2.3×2.3m NATO standard target
