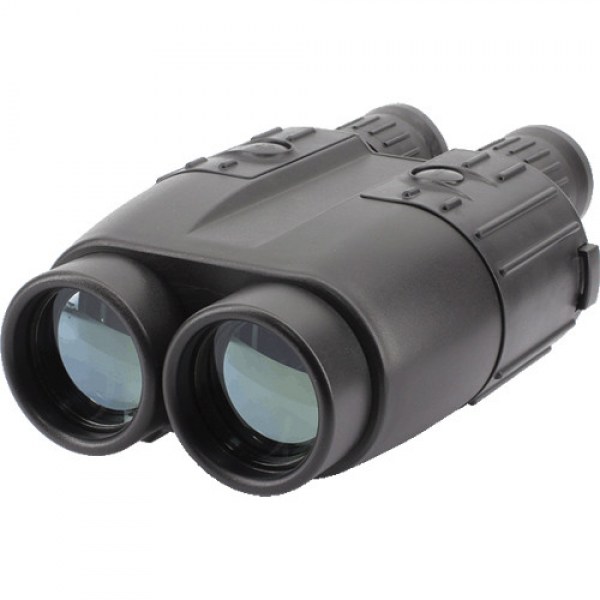

Range Finder - LRB 4000CI
**PLEASE CALL 506-378-1045 FOR A QUOTE**
The LRB 4000CI medium range laser rangefinder binoculars combine uncompromised 7×50 optics with advanced data processing algorithms. The rangefinder instantly measures distance up to 4,000 meters (output display in yards also), accurate azimuth and inclination via an in-built digital magnetic compass, and speed using the highly accurate time-of-flight delay method. LRB 4000CI also features RS-232 interface that enables immediate data acquisition by computers, external GPS receivers and various ballistic computers.
A gating algorithm implemented in LRB 4000CI dramatically improves reliability of measurement in unfavourable measurement conditions (e.g. rain, snow, bushes, wires, etc). Low power-consumption (one battery lasts for more than 5000 shots), ergonomic rubber-armoured body, long eye-relief, simple two-button operation, and wide objective lenses make observation and distance measurement with these binoculars accurate and comfortable.
Features:
- 4,000 metre range
- Distance, Azimuth and Elevation measurements
- Speed Detection
- MIL-STD-810G
General information:
Optics | |
Magnification (x) | 7 |
Objective len diameter (mm) | 50 |
Field of view (°) | 5 |
Eye relief (mm) | 18 |
Diopter adjustment range | ±4 |
Interpupillary distance (mm) | 58 – 72 |
Rangefinder | |
Eye safety | Class 1, eye-safe |
Wavelength (nm) | 905 |
Measuring distance range (m)* | 10 – 4,000 |
Azimuth measurement accuracy (°/mils) | ±1 / 17 |
Inclination measurement accuracy (°/mils) | ±0.5 / 8.8 |
Speed detection | ✓ |
First/last target logic | ✓ |
Scan mode | ✓ |
Peripheral compatability | PLGR, Bal Comp, PC, BT, Android |
Display |
|
Meters/yards display | ✓ |
Computer output, type | RS-232 |
Last 10 readings recall | ✓ |
Reticle pattern selection | ✓ |
Low battery indicator | ✓ |
Mechanics, Electronics & Environmental |
|
Dimensions (mm) | 210x150x80 |
Weight without batteries (g) | 1,300 |
Tripod mountable | ✓ |
Power Supply | 9V Non-Magnetic |
Battery life (# of measurements) | 5,000 |
Operating temperature range (°C) | -25 to +50 |
Storage temperature range (°C) | -30 to +55 |
Waterproofing | MIL-STD-810G |
*2.3×2.3m NATO standard target
