Infrared Laser - IRIL 1000M
**PLEASE CALL 506-378-1045 FOR A QUOTE**

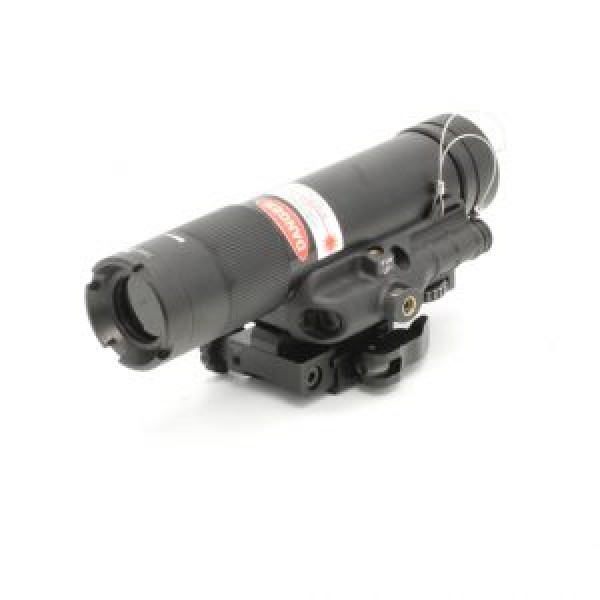

The IRIL series of IR laser illuminators light up the night sky for those wearing image intensified night vision devices. The IRIL 1000M is designed to reach out to extreme distances to aid in target identification and engagement from ground and air based platforms. The unit boasts adjustable beam divergence between 1.5 and 60 mrad allowing for use as either an infrared laser pointer or illuminator. Equipped with an Picatinny quick release mount, the IRIL 1000M can be mounted on virtually any rifle platform, or crew served weapon system. With extreme long maximum ranges (approximately 25 kilometers at 2 mrad), The IRIL 1000M provides significant optical advantage to professional night operators. This is a Class IV laser product.
Features:
- Long range visible laser
- Mountable on various assault rifles
- Extremely rugged design
- Wired pressure switch
- MIL-STD-810G
General Information:
| Visible Laser Aimer | |
| Eye safety | 3R |
| Distance, high (m) | 500 (night) |
| Beam divergence, FWHM (mrad) | 1 |
| Spot size @ 100m (mm) | 100 |
| Wavelength (nm) | 532 ±10 |
| Infrared aser Illuminator | |
| Eye safety | 4 |
| Distance, high (m) | 30,000 |
| Beam divergence, FWHM (mrad) | 2 – 60 |
| Spot size @100m, min divergence / max divergence (mm) | 200-6000 |
| Wavelength (nm) | 810 ±10 |
| Ballistics | |
| Windage adjustment step (MOA) | 1.6 |
| Windage adjustment range (MOA) | ±120 |
| Elevation adjustment step (MOA) | 1.6 |
| Elevation adjustment range (MOA) | ±120 |
| Retention after 1,000 shots (MOA) | 2 |
| Mechanics, Electronics & Environmental | |
| Dimensions (mm) | 154x65x57 |
| Weight without batteries (g) | 425 |
| Shock resistance (G) | 500 |
| Quick release | Yes |
| Battery type | 1x 18650 Lithium |
| Battery life, high / low (hours) | 4 / 8 |
| Operating temperature range (°C) | -20 to +50 (IR) / -10 to +50 (Green) |
| Storage temperature range (°C) | -40 to +60 |
| Waterproofing | IP67 |
